Mineral Resource of the Month: Titanium

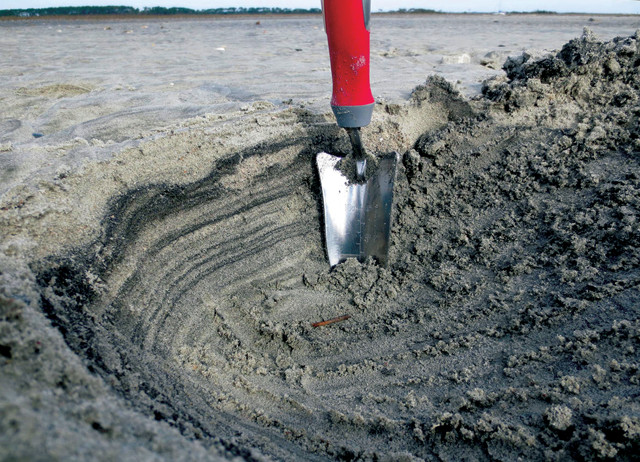

Dark layers in these heavy mineral sands in South Carolina are composed mainly of rutile and ilmenite. Credit: USGS. Dark layers in these heavy mineral sands in South Carolina are composed mainly of rutile and ilmenite. Credit: USGS.

by George M. Bedinger, USGS mineral commodity specialist

PRODUCTION

GEOLOGIC OCCURENCE

Titanium is the ninth-most abundant element in Earth’s crust and is found in nearly all rocks and sediments, although it is not found as a pure metal in nature. It has a strong affinity for oxygen, typically forming oxide minerals — the most important being ilmenite and rutile. Processing of ilmenite and rutile in shoreline (beach) and fluvial (river and stream) heavy mineral sand deposits — found along many continental margins — provides most of the world’s titanium supply. Most of the remaining supply comes from two large hard rock deposits that contain ilmenite.

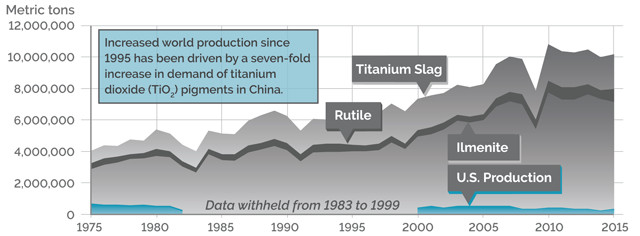

WORLD PRODUCTION, TITANIUM MINERAL CONCENTRATES

Credit: K. Cantner, AGI. Credit: K. Cantner, AGI.

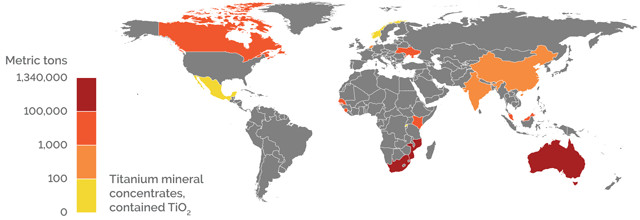

WORLD PRODUCTION

Credit: K. Cantner, AGI. Credit: K. Cantner, AGI.

CONSUMPTION

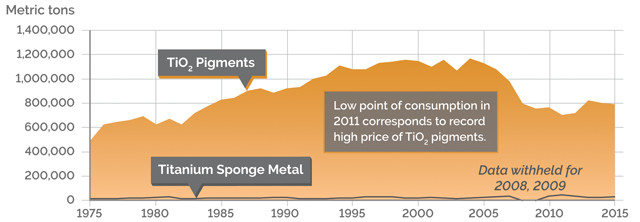

U.S. CONSUMPTION, TiO2 PIGMENTS AND METAL

Credit: K. Cantner, AGI. Credit: K. Cantner, AGI.


U.S. IMPORTS

Credit: K. Cantner, AGI. Credit: K. Cantner, AGI.


  Titanium sponge metal formed by the Kroll process, the first metallic stage in the titanium metal fabrication process. Credit: George Bedinger. Titanium sponge metal formed by the Kroll process, the first metallic stage in the titanium metal fabrication process. Credit: George Bedinger.

COMMERCIAL USAGE

  • About 90 percent of the world’s annual production of titanium minerals is refined into titanium pigments; 5 percent is made into metal; and the remainder is used in the chemical and welding industries.
  • Owing to their high refractive index, titanium dioxide pigments impart whiteness, opacity and brightness to paints, paper, rubber and plastics. Titanium metal’s high strength-to-weight ratio and resistance to corrosion make it valuable in aerospace, consumer, industrial and medical applications.

FUN FACTS

  • Star sapphires and rubies owe their asterism (starlike rays of light observed when some minerals are viewed from certain directions) to inclusions of rutile within their crystalline structure.

  • Titanium’s resistance to corrosion results from a thin protective oxide layer that the metal forms instantly upon contact with oxygen. The naturally formed layer imparts a metallic gray color, but heat or electrochemical treatments can influence the thickness of the oxide layer, resulting in different colors.



Visit minerals.usgs.gov/minerals for more information

design by K. Cantner and N. Schmidgall, AGI
